Hidden Markov Model (2. For-Backward Prob. Calculation/ Viterbi Decoding Algorithm)

Detour: Dynamic Programming

- Dynamic Programming

• A general algorithm design technique for solving problems defined by or formulated as recurrences with overlapping sub-instances
• In this context, Programming == Planning

- Main storyline

• Setting up a recurrence
  • Relating a solution of a larger instance to solutions of some smaller instances
  • Solve small instances once
  • Record solutions in a table
  • Extract a solution of a larger instance from the table



Forward Probability Calculation

- Need to know $\alpha_t^k$

• Time X States
• When we know $\alpha_t^k$ with X, then we know the value of $P(X)$
  • Answering the evalutation question without Z
• ForwardAlgorithm
  • Initialize
    • $\alpha_t^k = b_{k, x_t} \sum_i \alpha_{t-1}^ia_{i,k}$
  • Return $\sum_i \alpha_T^i$
• Proof of correctness
  • $\sum_i \alpha_T^i = \sum_i P(x_1, \cdots , x_T, Z_T^i =1)=P(x_1, \cdots ,x_t)$
• Where to use the memorization table?
  • $\alpha_t^k$
• Limitation of the forward probability
  • Only takes the input sequence of X befor time t
  • $P(x_1, \cdots , x_t, Z_t^k = 1) = \alpha_t^K and t \neq T$
  • Need to see a probability distribution of a latent variable at time t given the whole X
  • Recall the bayes ball algorithm



Backward Probability Calculation

- 이를 계산하면 dynamic programming을 활용 가능함

- Forward 와 Backword를 활용하면 Decoding 문제를 해결가능함

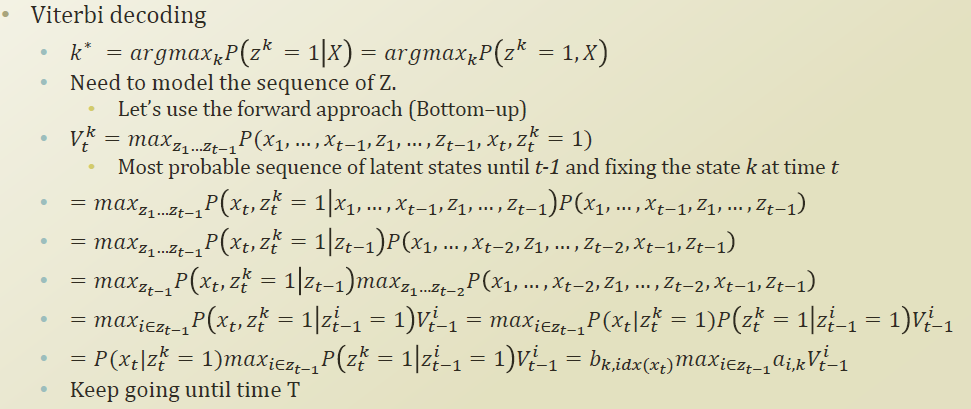

Viterbi Decoding

- Need to know $V_t^k$

• Time X States
• Store $V_t^k$ Two variables to store the trace and the probability up to time $t$: Two memorization tables
• Answering the decoding question with $\pi, a, b, X$

- ViterbiDecodingAlgorithm

• Initialize
  • $V_1^k = b_{k, x_1}, \pi _k$
• Iterate until time T
  • $V_t^k = b_{k, idx(x_t)} max_{i \in Z_{t-1}} a_{i, k}V_{t-1}^i$
  • $trace_t^k = argmax_i\in Z_{t-1} a_{i,k}V_{t-1}^i$
• Return $P(X, Z^*) = max_kV_T^k, Z_T^* = argmax_kV_T^k,Z_{t-1}^* = trace_t^{Z_t^*}$

- Technical difficulites in the implemtation

• Very frequent underflow problems
• Turn this into the log domain -> from multiplication to summation
• (지속적으로 확률의 곱셈이 이어지므로 너무 많은 소수점들의 곱셈 연산이 이어짐 -> log변환 후 연산)
